initialize set N = 64 initialize set phi0 = 2.000000e-01 initialize set phi0range = 1.000000e-03 initialize set s0 = 0.000000e+00 initialize set s0range = 0.000000e+00 initialize set theta0 = 0.000000e+00 initialize set theta0range = 0.000000e+00 initialize set rotation = 0.000000e+00 initialize file init0.fib9b-extract2 model zero integrate rk set Na = 50 set Nb = 10 set W0 = 1.400000e-01 set W1 = 1.000000e+00 set chi0 = 5.882353e-04 set chi1 = 1.000000e+00 set T = 8.000000e+00 set dx = 5.000000e-01 set checkbounds = true
Evolution of a droplet extracted from run fib9b3 at t=102.4
This droplet becomes rounder, then as the order develops, it elongates again. The original elongation is left over from the merger of two smaller droplets.
Pictures are phi, s pairs.

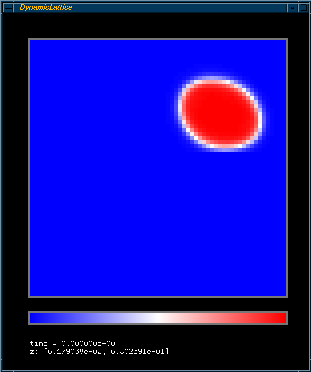

t=0 0.062 < phi < 0.680 0 < s < .012
Slight ordering, with defects at both ends. The truncation on the bottom edge of the droplet is probably due to the way it was extracted from run fib9b3.

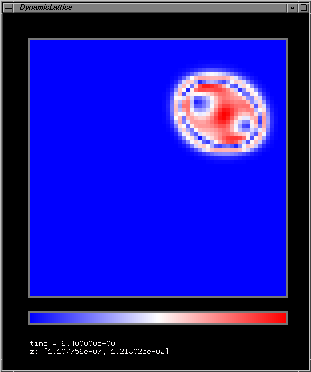

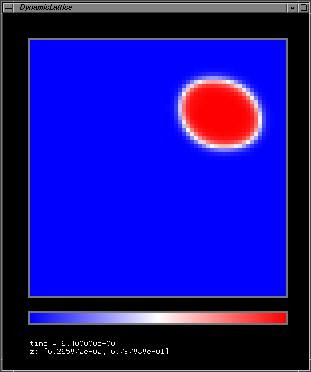

t=6.4 0.063 < phi < 0.680 0 < s < 0.012

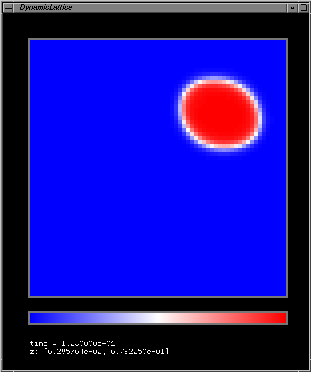

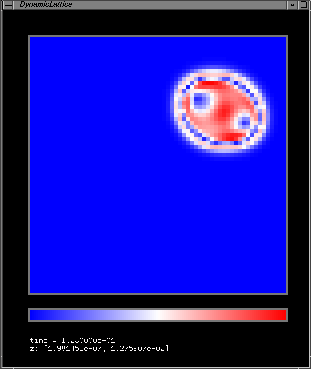

t= 12.8 0.063 < phi < 0.679 0 < s < 0.013

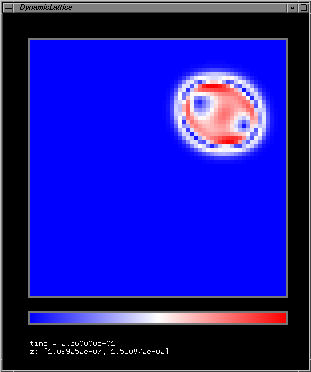

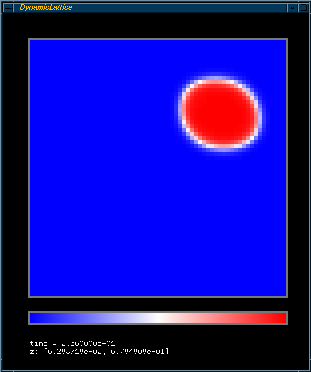

t=25.6 0.063 < phi < 0.678 0 < s < 0.015

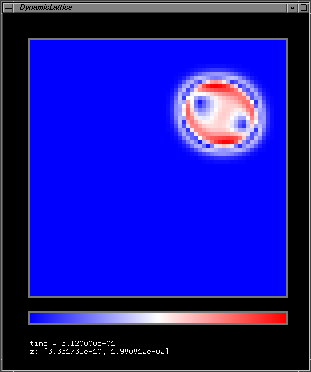

t=51.2 0.063 < phi < 0.677 0 < s < 0.019

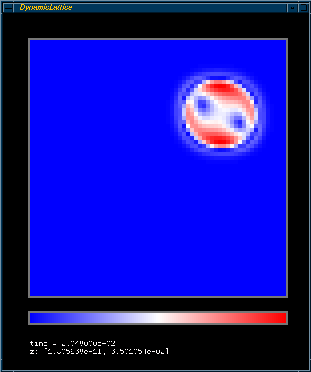

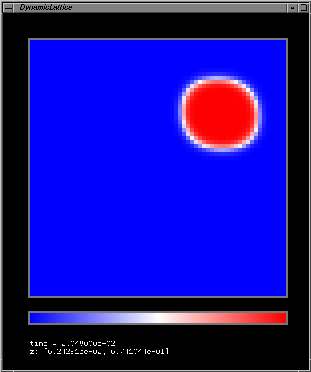

t=204.8 0.062 < phi < 0.674 0 < s < 0.035

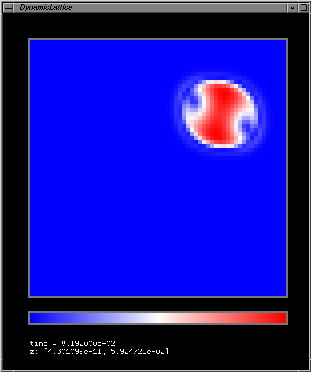

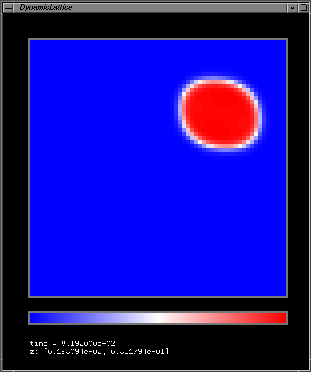

t=819.2 0.062 < phi < 0.683 0 < s < 0.059

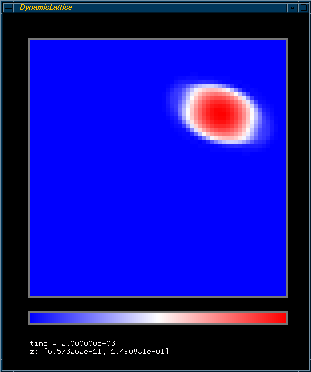

t=2000 0.602 < phi < 0.738 0 < s < 0.149

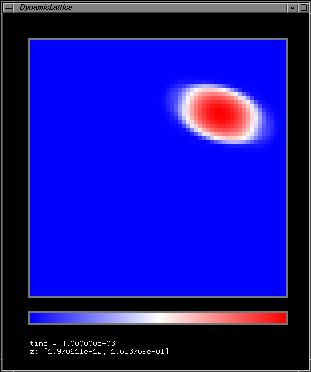

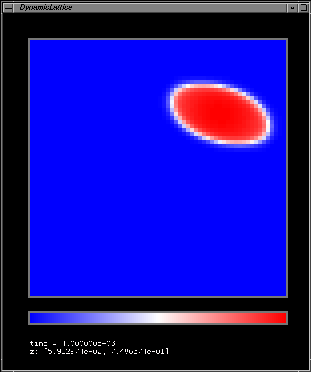

t=4000 0.059 < phi < 0.749 0 < s < 0.163
